Two-system robotic mowing, Camp Mountain QLD
A sloping acreage of house lawns and a steep paddock needed full automatic coverage. The 12,199 m² mapped work area was beyond any single mower suited to the slopes, so two satellite-guided Husqvarna Automowers were allocated across six zones and installed in one day without boundary wire. Christine took part in the assessment mapping and recommendation, mapped the AWD mower's zones on installation day, and ran the aftercare that followed.
- Business
- EZPZ Mowing
- Location
- Camp Mountain, QLD
- Installed
- April 2026 · one day on site
- Work area
- 12,199 m² · six mapped zones
- Equipment
- Automower 580 EPOS · Automower 435X AWD NERA
- Navigation

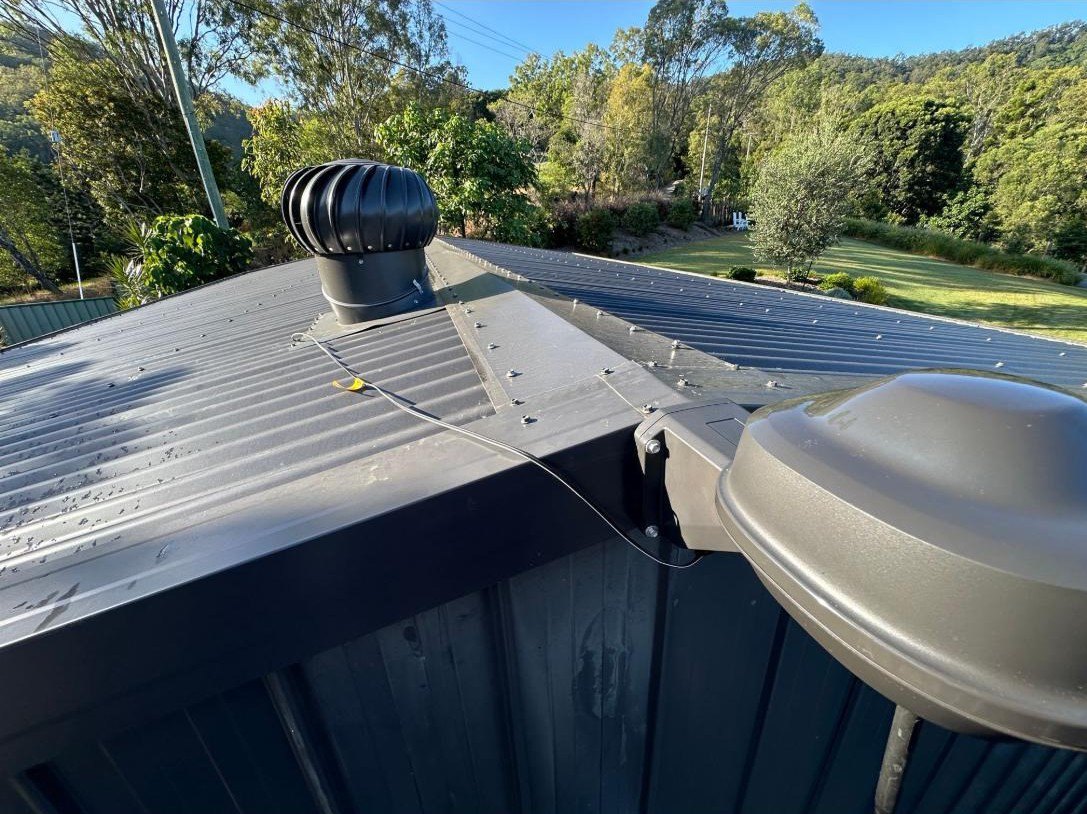

- EPOS satellite, roof-mounted reference station
- Drawing set
- CM-2026-CS01 · 4 sheets · 11 evidence items
The whole property, not just the lawns
Sloping acreage: manicured lawns beside the house and pool, plus a large paddock that falls away steeply toward the bush. Previously mowed by a contractor. The owners wanted the whole property covered automatically.
- 01Total work area of 12,199 m² across six mapped zones, from house lawns to paddock.
- 02Sections with very steep slopes, the client's biggest concern.
- 03The all-wheel-drive model suited to the slopes is rated to 3,500 m² working capacity, so it cannot cover the property alone. A two-system setup was required.
Responsibility matrix
- Sale facilitation
- Work-area mapping of the 435X AWD zones on installation day
- Invoicing and accounting
- After-sale follow-ups
- First contact, triage and repair booking for issues
- Maintenance scheduling
- Site-assessment mapping
- System recommendation
- Installation (assisted on the day)
- System recommendation led by the EZPZ team
- Installation by the team
- Diagnosis and repairs by the lead technician
Allocation logic
- G1 · Site constraintVery steep sectionsThe client's primary concern, identified during assessment.→ 435X AWD NERA allocated to the steeper work areas
- G2 · Capacity checkSingle-system coverageAWD working capacity of 3,500 m² against 12,199 m² of mapped work area.→ Second system allocated to the bigger areas
- G3 · Model selectionBigger areasLarger work areas total 10,072 m². 580 EPOS selected on capacity (11,200 m² working) and operational needs: growing-season output, shorter charging time, reduced system load.→ 580 EPOS installed
Zone schedule · E-01
| Zone | Area | Mower |
|---|---|---|
| Z1 | 6,056 m² | 580 EPOS |
| Z2 | 2,496 m² | 580 EPOS |
| Z3 | 1,177 m² | 580 EPOS |
| Z6 | 343 m² | 580 EPOS |
| Z4 | 1,749 m² | 435X AWD |
| Z5 | 378 m² | 435X AWD |
| Total | 12,199 m² | Mapped figure governs |

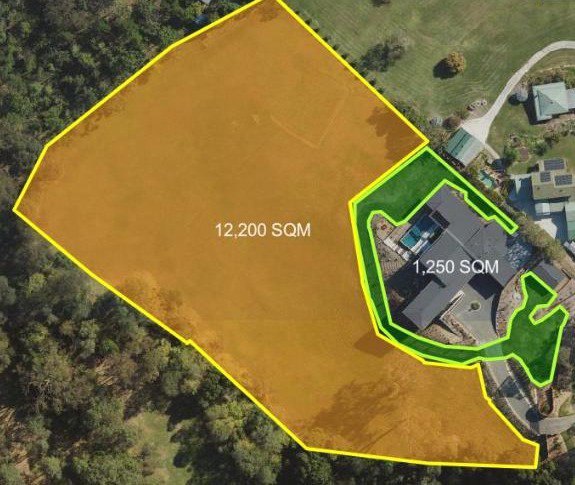

The pre-sale assessment estimate was 13,450 m² (E-04). The mapped total replaced it.
Capacity check · to scale, 0–16,000 m²
Working capacities are manufacturer ratings with a 30% buffer, as stated in the drawing set. The 580 EPOS's 10,072 m² is 1,672 m² above the 560 EPOS working capacity; the 560 is shown as a comparison point only and was not recommended for this site.
Installed, then supported

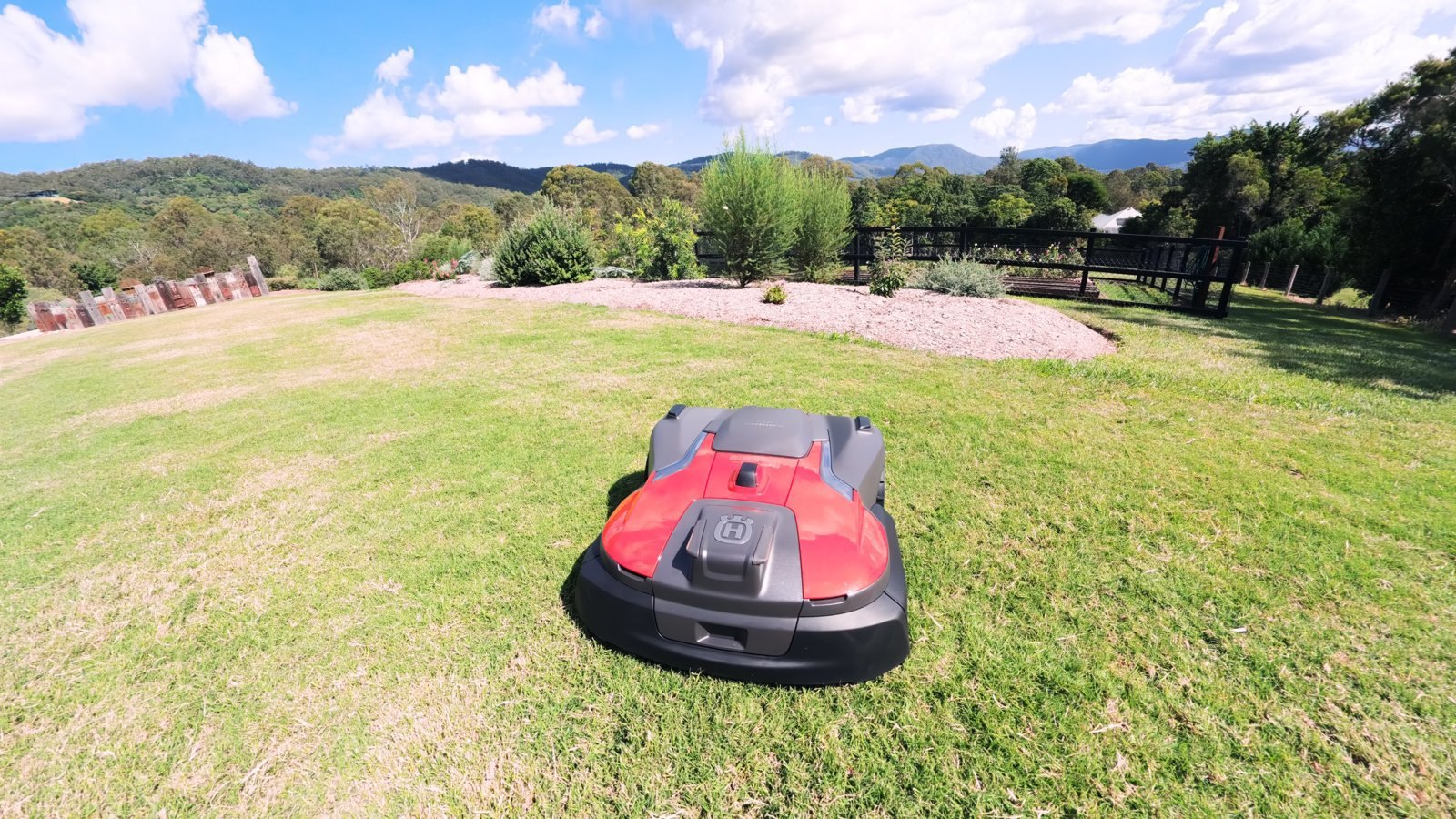

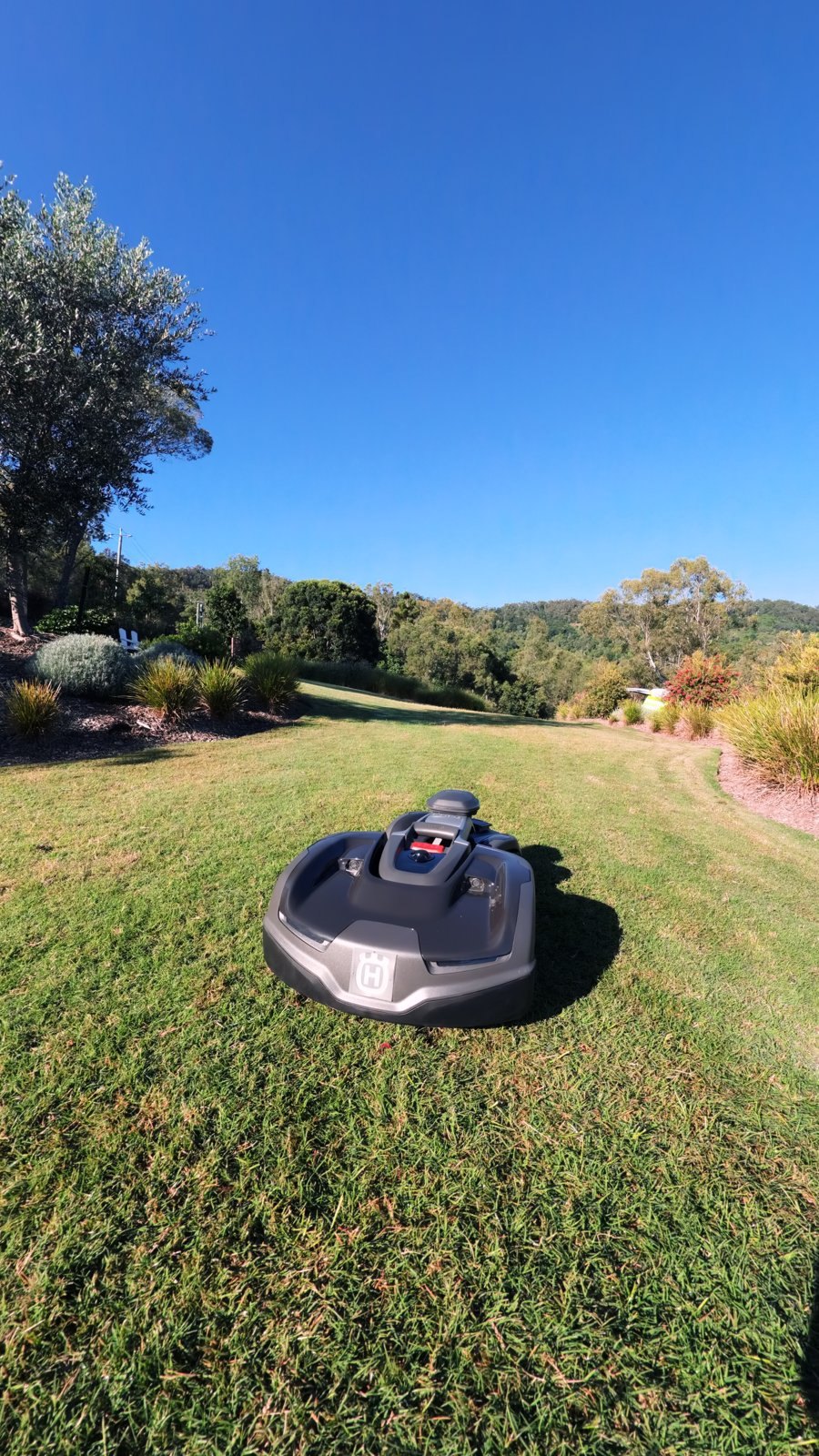

- Two EPOS mowers installed in one day on separate work areas, with no boundary wire. The AWD mower runs the steepest banks; the 580 EPOS covers the larger, gentler ground.
- Per the published installation case study (E-02), the whole property is mowed automatically and the owners manage it from their phone.

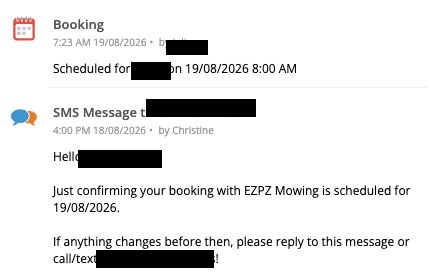

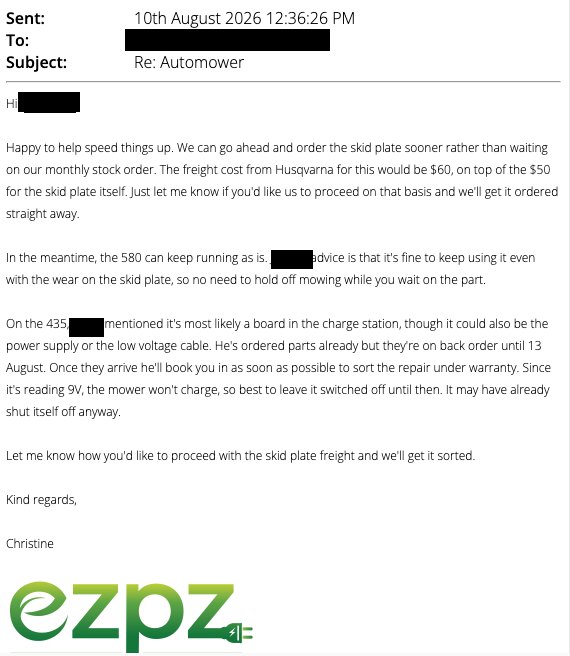

- A 435X charge-station fault was triaged by Christine, diagnosed by the lead technician and repaired under warranty on 19 August 2026. The 435X has worked normally since.
“The mowers are going fantastically ... it's better than mowing.”
5.0 — Tools & systems used
Selected evidence
CM-2026-CS01 · four A3 sheets
The complete, original case study with every diagram, schedule and evidence reference. Opens full screen in a new tab; best viewed on a larger display.
Open full technical drawing set- AProject overview / role / evidence index

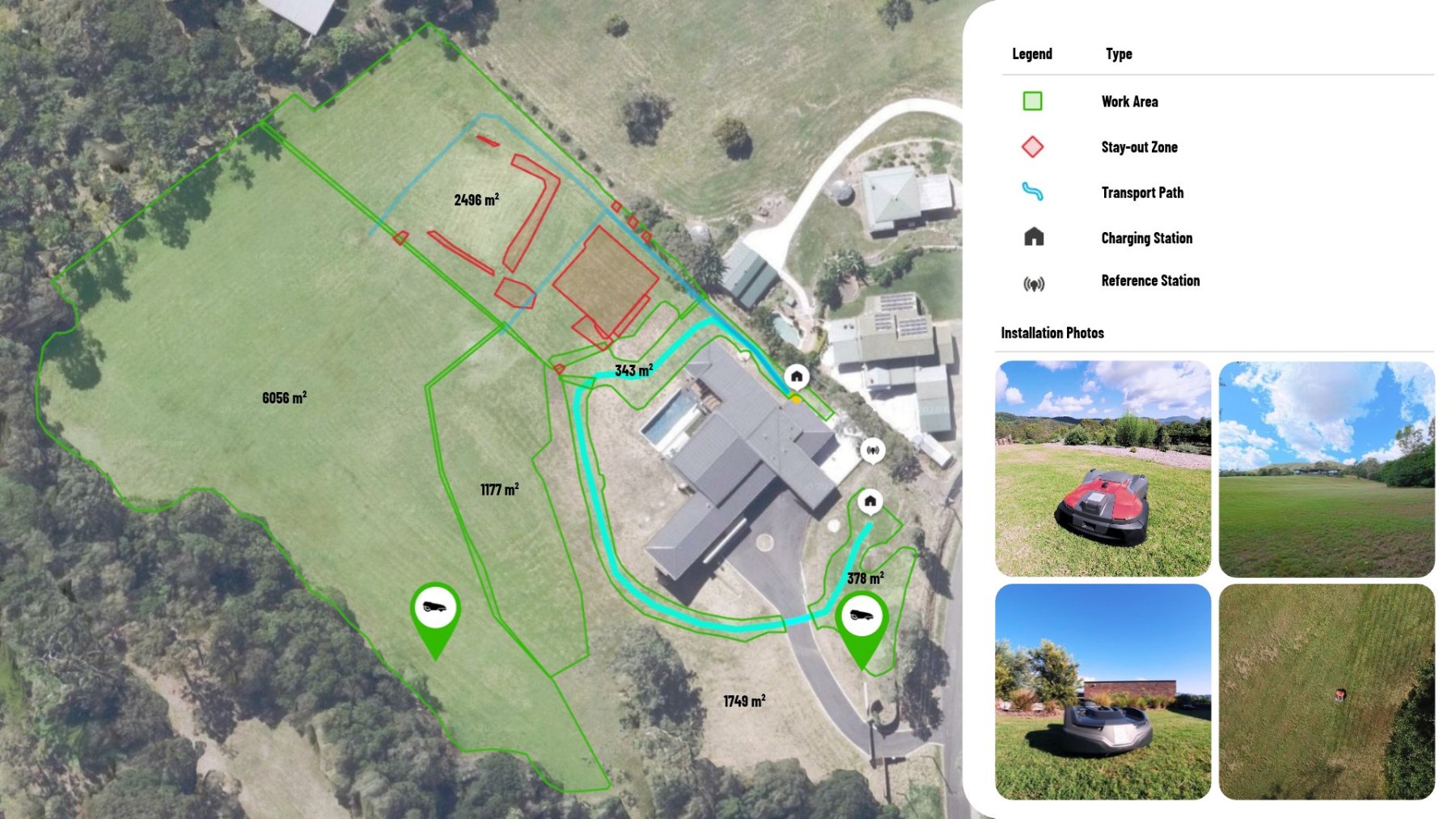

- BSite plan / mapped work areas
- CAllocation logic / installation evidence
- DAftercare / field support lifecycle
